Introduction

SHIM STOCK MATERIAL

Tempered spring steel, both 1075 and 1095 make excellent carbon steel shims as well. A shim is a thin and sometimes tapered or wedged piece of metal, used to fill small gaps or spaces between objects. Shims are typically used to support or provide a level surface. They're also used as spacers to fill gaps between parts that can be subject to wear and tear, or damaged, if not properly installed.

TEMPERED SPRING STEEL VALUE-ADD SERVICES

Mead Metals’ tempered spring steel is available in a range of sizes and thicknesses from .005 to .062. We stock quantities to meet the requirements of any project, large or small. We can perform a number of value-add services including:

  • Precision slitting
  • Edge-conditioning
  • Cutting-to-length
  • Shearing
1140x560_0008_Tempered-Steel

Product Specification

Tempered Spring STEEL PRODUCT SPECIFICATIONS

Our tempered spring steel, commonly referred to as high carbon steel, meets ASTM A684 specifications and is useful for a number of applications.

We supply 1075 scaleless blue tempered spring steel. It is softer than 1095, and it has medium carbon content and a polished finish. It can be used for a variety of applications, including lower carbon where a polished surface is not required.

Our 1095 scaleless blue tempered spring steel is harder than 1075, but it is not as easily formable. It features a higher carbon content and a polished finish. AISI 1095 tempered spring steel is ideal for a number of uses, including use in springs and steel tapes.

Tempered Spring Steel
Physical & Chemical Properties

Tempered Spring Steel Chemical Specifications
ASTM A684
Alloy Blue Tempered and Polish Scaleless Blue Tempered
UNS Number G10950 G10750
Specs ASTM A684 ASTM A684
Rockwell C48-51 C44-47
Chemical Composition
 Carbon .90 - 1.04 .70 - .80
Maganese .30 - .50 .50 - .70
Phosphorus (max) 0.035 0.035
Sulfer (max) 0.04 0.04
Silicon .15 - .30 .15 - .30
Download a Printer-Friendly Version of Tempered Spring Steel Specs. Download Your Specs Now

Ordering

MINIMUM ORDER QUANTITies

Our Minimum Order Quantities enable us to suit metal product orders of all sizes. Every metal product we provide has its own MOQ, and for tempered spring steel, our MOQ is 10-12 lbs. While we can, and will, support orders for quantities smaller than this, the minimum lot charge will remain the same for any quantities ordered at, or below, a metal’s MOQ. Additional variables apply depending on material thickness, width, and additional processing.

Production Process

740x455_0001_Tempered-Spring
1

Material is heated below its recrystallization temperature

2

The heating process increases hardness without sacrificing flexibility

3

The steel is cooled in still air

4

The cooling process improves material toughness

Pros/Cons

Pros:

  • Very high yield strength
  • Resistant to deformation
  • Takes on a blueing color
  • Resilient
Gallery-740x455_0021_Mead-207
Gallery-740x455_0001_Mead-270
Gallery-740x455_0025_Mead-145

Cons:

  • Very hard
  • Takes on a blueing color
  • Imported, making it subject to tariffs and trade uncertainty

Simplify Your Purchasing Process with the Complete Guide to Buying Metal Products Read Now

Applications

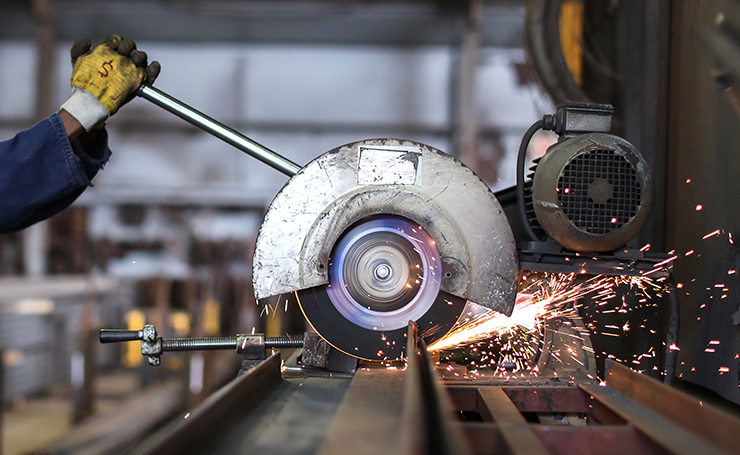

Industrial-Manufacturing

Industrial Manufacturing

As a general use steel, spring steel has a wide range of commercial applications. It is a common material used for manufacturing objects like springs, washers, saw blades, lock picks, antennas, and scrapers.

It's also commonly used to create lawnmower parts, the landing gear of small aircrafts, and vehicle coil springs.

Hand-Tools

Hand Tools

More surprising uses for spring steel include hand tools like lock picks, knives, and even binder clips. Miscellaneous spring steel use can be found in the aerospace sector in antennas and aircraft landing gear. Any time you need a workable material but can't afford to sacrifice durability, you can probably assume that the manufacturer is using spring steel.

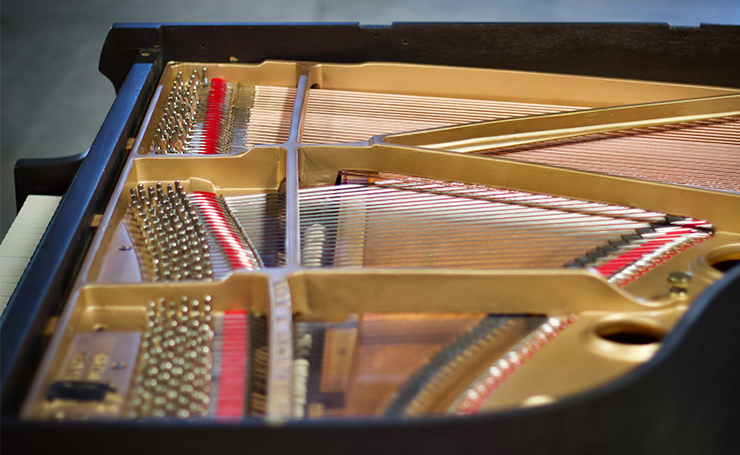

Music

Music

This type of metal is used in music wire which is most commonly found in pianos. Musicians use spring steel in pianos because piano wire needs to be pulled extremely tight, but still holds up when the hammer of the keys is pounding on it. Because of its pliability and strength, it's been used in pianos for centuries.

Blogs

What is the Difference: Tempering vs. Annealing?

Of the numerous techniques for heat-treating metal, I’ll be covering two of them in detail today: annealing and tempering.

Read More

Mead Metals Customer Feature: Engel Diversified Industries

I asked Kristina Engel-Douma, Vice President of Sales and Marketing at Engel Diversified about her experiences working with Mead Metals.

Read More

3 Uses for Spring Steel that Might Surprise You

What is spring steel used for? It's used for products needed in the manufacturing process, but there are many uses that will certainly surprise you.

Read More

All You Need to Know About Steel Alloys

Many people are unaware of steel’s various properties, intricacies, and uses. If that's true for you, you'll find some interesting info in this post.

Read More

Steel: Quality is Our Priority

When it comes to ensuring our steel – and all of our metal materials – we start with the basics and keep a constant eye on quality. Here’s our process.

Read More

Common Uses for Spring Steel

Spring steel is known to be resilient and pliable with a high yield strength. Here are some of this metal's physical and chemical traits.

Read More

Quick Quote

The Authority & Visibility Your Business Deserves.

What are you looking for?

We have helped countless customers acquire specialty metal products that have been elusive, or too expensive, elsewhere. Since 1961, we’ve empowered customers to explore the niche offerings Mead Metals specializes in, making their business—and bottom line—the priority it should be.

With Mead Metals, you benefit from authority and visibility—your own.

Are you in need of tempered spring steel? Let us know the quantity, specifications, and delivery date you need, and we'll provide you with a quote typically within 2 hours or nearly guaranteed same day.

Stock Items

Looking for Stock Tempered Spring Steel?

 We keep 1075 and 1095 scaleless blue tempered spring steel available in thicknesses from 0.005 to 0.062, in commercial quality through full-hard tempers.

See a full list of tempered spring steel stock items here.
