INTRODUCTION TO A109 COLD ROLLED STRIP STEEL

Cold rolled steel is a low-carbon steel that is finished at room temperature. Due to its processing, cold rolled steel sheets are typically more durable than hot rolled steel, and have a better-looking finish which makes it a prime metal for applications such as automotive and appliances, where finish matters in both form and function.
1140x560_0004_Cold-Rolled

Product Specification

A109 Cold Rolled Strip Steel Product Specifications

Mead Metals stocks ASTM A109 cold rolled strip steel in tempers 1 lb (full hard) through 5 lbs (dead soft). ASTM A109 strip steel offers tighter thickness tolerances than ASTM A1008 steel. It is highly formable, depending on temper, and is useful in a wide range of applications.

A109 Cold Rolled Strip Steel
PHYSICAL & CHEMICAL PROPERTIES

Cold Rolled Strip Steel Physical Properties
ASTM A109
Temper Bend Test Requirement
No. 1 Hard  Not required to make bends in any direction
No. 2 Half-Hard  Bend 90 degrees transverse around a radius equal to that of the thickness.
 No. 3 Quarter-Hard  Bend 180 degrees transverse over one thickness of the strip and 90 degrees longitudinal around a radius equal to the thickness.
 No. 4 Commerical Quality  Bend flat upon itself in any direction.
No. 5 Dead-Soft  Bend flat upon itself in any direction.


Cold Rolled Strip Steel Physical Properties
 Temper  Thickness Rockwell Hardness
   Range Minimum  Maximum (approx)
 No. 1 - Hard     0.025  15T90  ****
   0.040 - 0.025  30T76  ****
   0.070 - 0.040  B90.0  ****
   0.300 - 0.07  B84.0  ****
 No. 2 Half-Hard    0.025  15T83.5  15T88.5
   0.040 - 0.025  30T63.5  30T73.5
   0.300 - 0.040  B70.0  B85
 No. 3 Quarter-Hard    0.025  15T80  15T85
   0.040 - 0.025  30T56.5  30T67
   0.300 - 0.040  B60  B75
 No. 4 Skin-Rolled 0.025  *** 15T82
  0.040  *** 30T60
  0.300  *** B65
 No. 5  Dead-Soft    0.025  ***  15T78.5
   0.040 - 0.025  ***  30T53
   0.300 - 0.040  ***  B55
Simplify Your Purchasing Process with the Complete Guide to Buying Metal Products Read Now

Ordering

Minimum Order Quantities

Our Minimum Order Quantities enable us to suit metal product orders of all sizes. Every metal product we provide has its own MOQ, and for A109 cold rolled strip steel, our MOQ is 30-60 lbs. While we can, and will, support orders for quantities smaller than this, the minimum lot charge will remain the same for any quantities ordered at, or below, a metal’s MOQ. Additional variables apply depending on material thickness, width, and additional processing.

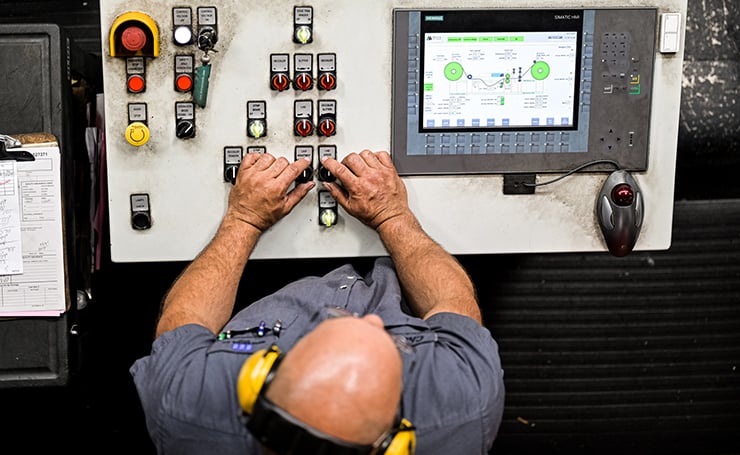

Production Process

740x455_0005_Cold-Rolled
1

Steel is hot rolled to reach ideal malleability in order to increase its functionality & intended use

2

Steel is pickled to remove surface impurities—like rust & scale to restore ideal corrosion-resistant properties

3

Steel is cold rolled & finished at room temperature for optimal finish and durability

Pros/Cons

Pros:

  • Available in tight tolerances
  • Lightweight
  • Provides surface uniformity
  • Works well for products that will be chrome- or nickel-plated
  • Typically more durable than hot rolled steel
  • Has one of the best looking finishes
Gallery-740x455_0026_Mead-127
Gallery-740x455_0024_Mead-154
Gallery-740x455_0010_Mead-246

Cons:

  • More expensive than commercial-quality cold rolled steel
  • More expensive than hot rolled steel
  • Certain coatings may highlight surface defects
  • Appearances can vary from heat to heat
  • Due to its finish and functionality, typically best used where dimensional tolerances and surface finish are major factors
Download a Printer-Friendly Version of A109 Cold Rolled Strip Steel Specs. Download Your Specs Now

Applications

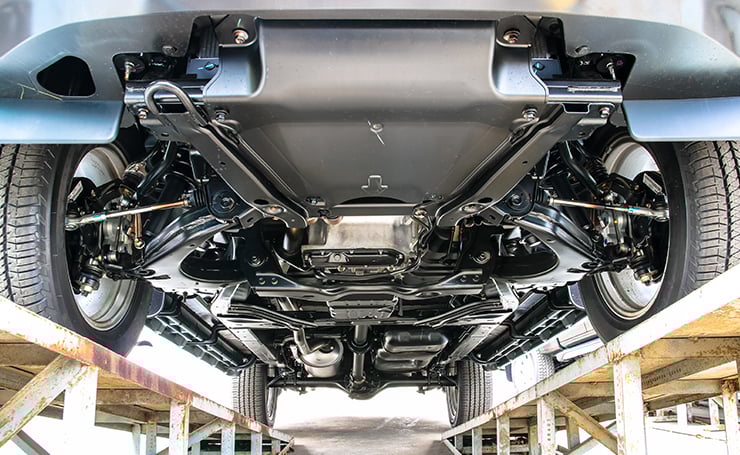

Automotive

AUTOMOTIVE

The automotive industry has some of the highest standards when it comes to the parts and components involved in manufacturing. Keeping motorists safe requires sourcing steel from companies that adhere to the strictest compliance. We provide cold rolled steel for the automotive industry used in frames, parts, cabs, mufflers and pipes, and sub-flooring.

Application-740x455_0005_GettyImages-469207084

DOMESTIC APPLIANCES

Both commercial and residential appliances including ovens and ranges, refrigerators, microwaves, washers and dryers, and associated replacement parts require stainless steel components for optimal performance and longevity. We partner with appliance manufacturers to provide the stock material and specialized steel products required for the best products.

Miscellnous-Manufacturing

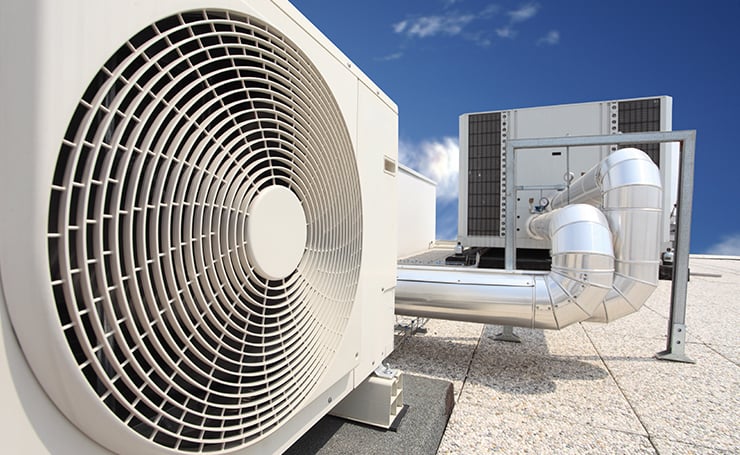

MISCELLANEOUS MANUFACTURING

Steel is the backbone of many great products produced by manufacturers in the commercial, industrial, and miscellaneous manufacturing sectors. From frames and parts to high-strength plates, HVAC components, and containers of varying applications, Mead Metals keeps manufacturing customers moving.

Blogs

How Market Volatility Affects Steel Prices and What That Means for Order Quantities

Let’s look at what market volatility means in the steel industry, what some of the causes may be, and how it’s currently affecting demand and price.

Read More

All You Need to Know About Steel Alloys

Many people are unaware of steel’s various properties, intricacies, and uses. If that's true for you, you'll find some interesting info in this post.

Read More

Steel: Quality is Our Priority

When it comes to ensuring our steel – and all of our metal materials – we start with the basics and keep a constant eye on quality. Here’s our process.

Read More

A109 Cold Rolled Strip Steel vs. Cold Rolled 1008/1010 Steel

Comparing cold rolled steel to cold rolled strip steel is about looking at overall quality, price, surface finish, precision, and corrosion resistance.

Read More

Common Uses for Cold Rolled Strip Steel

We're covering some of the unique properties of cold rolled strip steel, along with a few of this metal product's most common applications.

Read More

Common Uses for Cold Rolled Steel

Cold Rolled Steel, often abbreviated to CRS, is known for being highly resistant to soil corrosion & extremely ductile. Learn more about this steel alloy.

Read More

Quick Quote

The Authority & Visibility Your Business Deserves.

What are you looking for?

We have helped countless customers acquire specialty metal products that have been elusive or too expensive elsewhere. Since 1961, we’ve empowered customers to explore the niche offerings Mead Metals specializes in, making their business—and bottom line—the priority it should be.

With Mead Metals, you benefit from authority and visibility—your own.

Are you in need of A109 cold rolled strip steel? Let us know the quantity, specifications, and delivery date you need, and we'll provide you with a quote typically within 2 hours or nearly guaranteed same day.

Stock Items

Looking for Stock A109 Cold Rolled Steel?

Mead Metals stocks A109 cold rolled steel sheets in a wide range of gauge and tempering, from .005-inch to .1345-inch variances and strip steel in tempers 1 lb (full hard) through 5 lbs (dead soft). ASTM A109 strip steel offers tighter thickness tolerances than ASTM A1008 steel. It is highly formable, depending on temper, and is useful in a wide range of applications.

See a full list of A109 cold rolled strip steel stock items here.
