Introduction

INTRODUCTION TO COPPER

We stock copper alloy 110, also referred to as electrolytic tough pitch (ETP). ETP and other coppers exhibit outstanding thermal conductivity, as well as 100% IACS minimum electrical conductivity. Copper alloys offer high resistance to soil corrosion and are extremely ductile.

Product Specification

Copper Product Specifications

Mead Metals stocks alloy 110 copper products in gauges from 0.005 up to 0.187. We offer annealed, quarter hard, half-hard, and full-hard tempers. Other copper alloys and tempers are available upon request. All of our copper products are available in sheet and coil.

To give added value to our copper products, Mead Metals offers a number of value-added services. We will:

Cut-to-length
Edge-roll

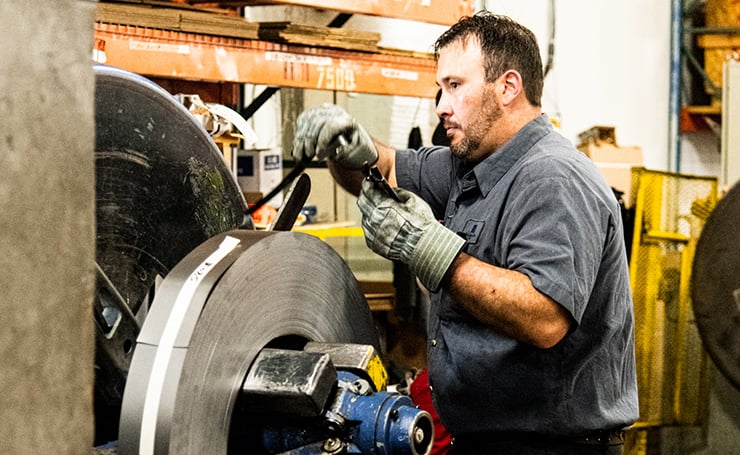

Precision slit

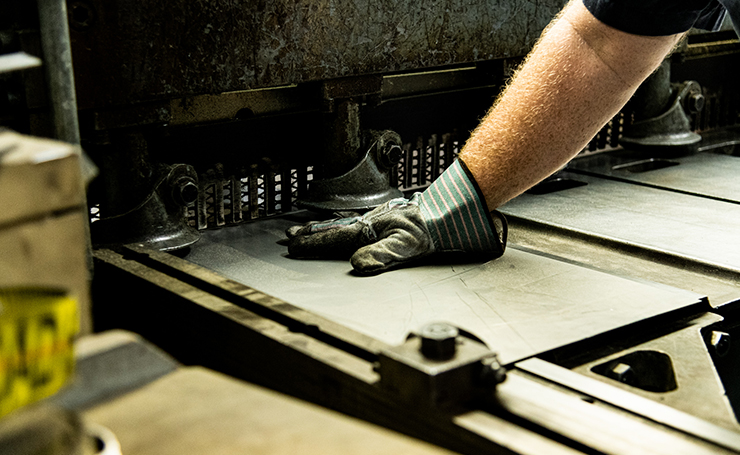

Shear

By offering these services in-house, we can save you time and money on your project and ship your product in your exact specifications.

Copper Physical & Chemical Properties

Copper
Alloy 110
ASTM B152
UNS Number C11000
Temper	Annealed	Quarter Hard	Half Hard	3/4 Hard	Full Hard	X-Tra HD	Spring Temper
Temper	Annealed	H01	H02	H03	H04	H06	H08
Chemical Composition
Copper %	99.9	99.9	99.9	99.9	99.9	99.9	99.9
Tensile Strength	26-38	34-42	37-46	41-50	43-52	47-56	50-58
*Rockwell F - Scale		60-84	77-89	82-91	86-93	88-95	91-97
*Superficial 30T		18-51	43-57	47-59	54-62	56-64	60-66
*For Reference Only

Download a Printer-Friendly Version of Copper Specs. Download Your Specs Now

Ordering

Minimum Order Quantities

Our Minimum Order Quantities enable us to suit metal product orders of all sizes. Every metal product we provide has its own MOQ, and for copper, our MOQ is 5-7 lbs. While we can, and will, support orders for quantities smaller than this, the minimum lot charge will remain the same for any quantities ordered at, or below, a metal’s MOQ. Additional variables apply depending on material thickness, width, and additional processing.

Production Process

1

Material is mined as an ore product

2

Copper concentrate is purified

3

Smelting, a high heat process, further purifies and allows form to be changed

4

Copper is cast into a final shape, such as coil strip

Pros/Cons

Pros:

Great electrical and thermal conductivity
Resistant to soil corrosion
Extremely ductile
Antimicrobial
Soft and malleable
100% recyclable

Cons:

Easily damaged during handling and shipping
Price fluctuates daily based on commodity trading

Simplify Your Purchasing Process with the Complete Guide to Buying Metal Products Read Now

Applications

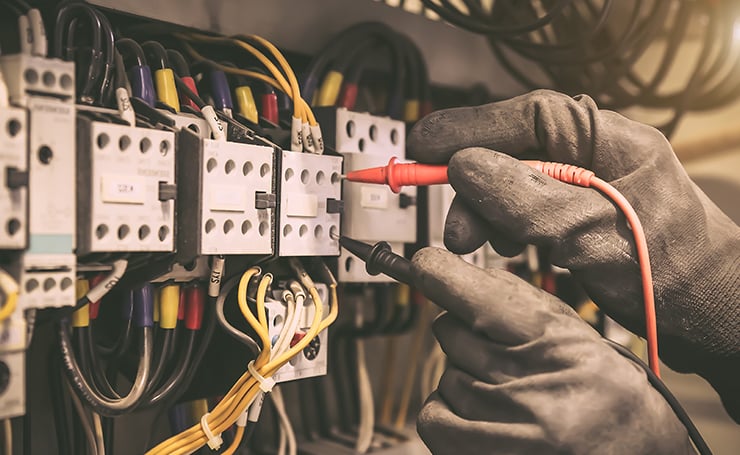

Electronics & Communications

Due to its ductility and electrical and thermal conductivity, copper is oftentimes used in the production of electrical conductors, switches, transformers, and telecommunications.

Being naturally resistant to weathering and soil corrosion makes copper an ideal material for the production of roofing and plumbing applications.

Application-740x455_0005_GettyImages-469207084

Home Furnishings

Well-known and easily identifiable by its golden, reddish color, copper has a long history of use for decorative and functional purposes.

Home decor is another area where copper is appreciated with its unique aesthetic. Copper’s beauty lends itself to mirrors, doorknobs, and fixtures.

Medical

Copper—the medical world's super metal. Copper is antimicrobial making it very effective at fighting both bacteria and viruses, even possessing the ability to kill viral pathogens such as influenza A as well as bacteria like E-coli.

Copper's antimicrobial properties also make it a popular material for the manufacturing of doorknobs and handrails in public buildings.

Blogs

Copper Alloy 110 for Thermal Conductivity

Of all the qualities of copper, thermal conductivity is the one that sets it apart from other metals. Even more so when you're looking at copper alloy 110.

A Guide to Copper Alloys: Brass vs. Phosphor Bronze

Learn about the similarities, differences, and uses for brass and phosphor bronze — two of the most common copper alloys.

Why is Copper the Best Choice for Electrical Connectors?

Why is copper used for most electrical wiring? Because copper electrical connectors are the best in the game.

Mead Metals Customer Feature: Engel Diversified Industries

I asked Kristina Engel-Douma, Vice President of Sales and Marketing at Engel Diversified about her experiences working with Mead Metals.

We Are Open: Tackling the Challenge of COVID-19 Head On

As a provider to critical sectors for the production of essential products and services, we remain in full operation.

The Many Uses of Copper in Creating Art

Throughout history, copper’s unique aesthetics have made it a popular material for artists.

Quick Quote

The Authority & Visibility Your Business Deserves.

What are you looking for?

We have helped countless customers acquire specialty metal products that have been elusive or too expensive elsewhere. Since 1961, we’ve empowered customers to explore the niche offerings Mead Metals specializes in, making their business—and bottom line—the priority it should be.

With Mead Metals, you benefit from authority and visibility—your own.

Are you in need of copper? Let us know the quantity, specifications, and delivery date you need, and we'll provide you with a quote typically within 2 hours or nearly guaranteed same day.

Stock Items

Looking for Stock Copper?

Mead Metals stocks alloy 110 copper products in gauges from 0.005 up to 0.187. We offer annealed, quarter hard, half-hard, and full-hard tempers. Other copper alloys and tempers are available upon request. All our copper products are available in sheet and coil.

See a full list of copper stock items here.
