Introduction

Introduction to Cold Rolled 1008/1010 Steel

Mead Metals Inc. carries cold rolled steel per ASTM A1008 and AISI 1008/1010 grades. We offer ranges of sizes and quantities to fit your project’s needs. We accommodate both high- and low-volume cold rolled steel orders.

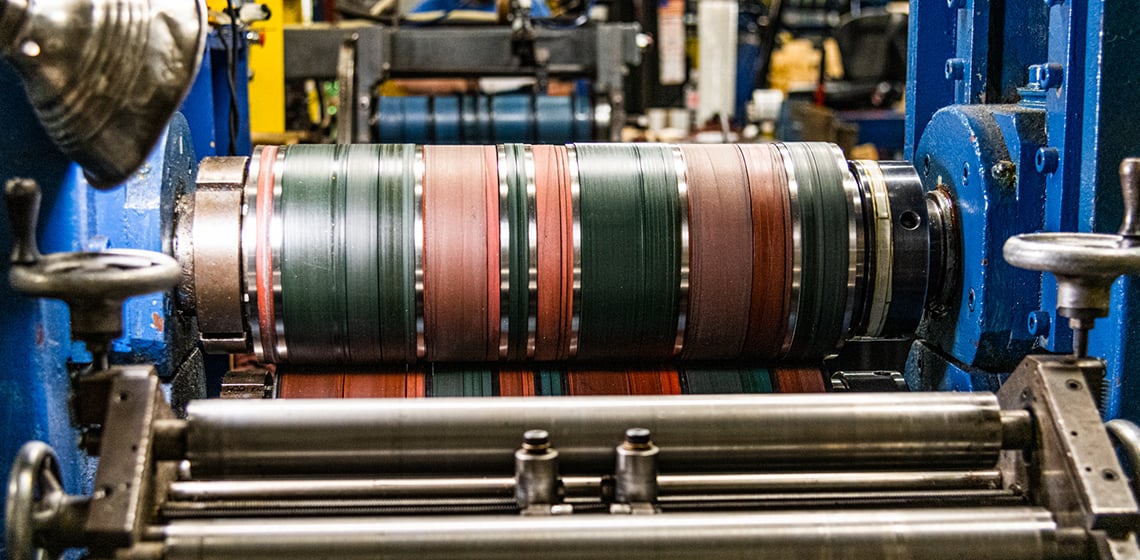

1140x560_0004_Cold-Rolled

Product Specification

COLD ROLLED 1008/1010 STEEL PRODUCT SPECIFICATIONS

Our cold rolled steel is ideal for use in home appliances and furniture, automotive bodies, and a number of other applications. 1008 cold rolled steel and 1010 cold rolled steel are easily formable for moderate draw applications. It is available in thicknesses from 0.005 to 0.134, in drawing quality up through full hard tempers. Upon customer request, we offer tighter thickness tolerances and non-standard thicknesses.

Cold Rolled 1008/1010 Steel
Physical & Chemical Properties

Cold Rolled 1008/1010 Steel Physical Properties
ASTM A1008/1010
Temper Designation Alloy
Dead Soft DS Type - B 1008
Commercial Quality CS Type - B 1008/1010
1/4 Hard   1008/1010
1/2 Hard   1008/1010
Full Hard   1008/1010


Cold Rolled 1008/1010 Chemical Composition
ASTM A1008/1010
Designation C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N B
CS Type A 0.10 0.60 0.025 0.035 - - 0.20 0.20 0.15 0.06 0.008 0.008 0.025 - -
CS Type B 0.02-0.015 0.60 0.025 0.035 - - 0.20 0.20 0.15 0.06 0.008 0.008 0.025 - -
CS Type C 0.08 0.60 0.10 0.035 - - 0.20 0.20 0.15 0.06 0.008 0.008 0.025 - -
DS Type A 0.08 0.50 0.020 0.020 0.01 min - 0.20 0.20 0.15 0.06 0.008 0.008 0.025 - -
DS Type B 0.02-0.08 0.50 0.020 0.030 0.02 min - 0.20 0.20 0.15 0.06 0.008 0.008 0.025 - -
DDS 0.06 0.50 0.020 0.025 0.01 min - 0.20 0.20 0.15 0.06 0.008 0.008 0.025 - -
EDDS 0.02 0.40 0.020 0.020 0.01 min - 0.10 0.10 0.15 0.03 0.10 0.10 0.15 - -
Note: All values referenced are max unless otherwise specified
Download a Printer-Friendly Version of Cold Rolled 1008/1010 Steel Specs. Download Your Specs Now

Ordering

Minimum Order Quantities

Our Minimum Order Quantities enable us to suit metal product orders of all sizes. Every metal product we provide has its own MOQ, and for cold rolled 1008/1010 steel, our MOQ is 30-60 lbs. While we can, and will, support orders for quantities smaller than this, the minimum lot charge will remain the same for any quantities ordered at, or below, a metal’s MOQ. Additional variables apply depending on material thickness, width, and additional processing.

GET A QUOTE NOW

Production Process

740x455_0005_Cold-Rolled
1

Steel comes from either an integrated mill where raw materials are melted to make the steel, or mini-mills where scrap metals are primarily used

2

During processing, steel is first hot-rolled

3

Then, the steel is cold-rolled

Pros/Cons

Pros:

  • Maintains tighter tolerances
  • Cleaner surface compared to hot-rolled
  • 100% recyclable
Gallery-740x455_0013_Mead-233
Gallery-740x455_0012_Mead-242
Gallery-740x455_0004_Mead-297

Cons:

  • Not ideal for plating applications
  • Susceptible to oxidation
Simplify Your Purchasing Process with the Complete Guide to Buying Metal Products Read Now

Applications

Hand-Tools-Cold-Rolled

Hand Tools

In manufacturing hand tools or machine tools, like dies or drill bits, cold rolled 1008/1010 steel is a perfect choice. Properties that make this alloy steel the best option for tool manufacturing include high material hardness that makes it resistant to deformation and flattening, toughness and breakage resistance, and abrasion/erosion resistance.

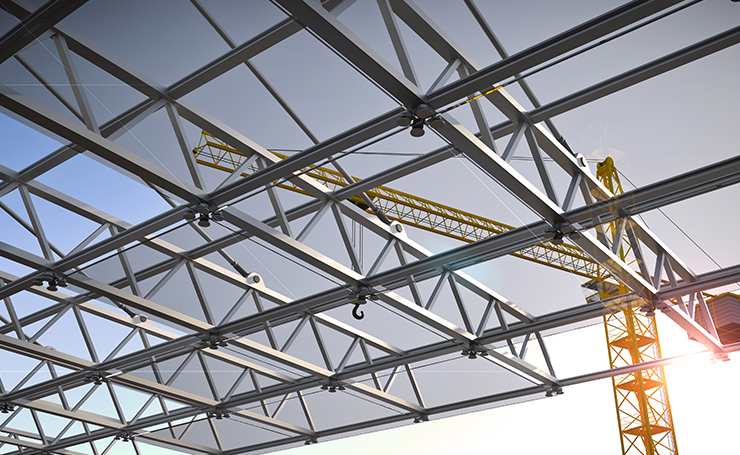

Construction-Industry

Construction Industry

When it comes to the construction industry, cold rolled steel has been increasing in demand, especially for framing applications. Framing made from cold rolled steel is both lighter and stronger than competing materials. In recent years, cold-formed steel framing has become the material of choice for multi-housing buildings like dormitories, hotels, and assisted living facilities.

Application-740x455_0005_GettyImages-469207084

Household Items

Cold rolled 1008/1010 steel is ideal for use in home appliances and furniture. It has numerous qualities that lend themselves to lighting fixtures. This particular steel performs extremely well in applications requiring production precision.  Finally, cold rolled steel works with a wide variety of surface finishes, providing a level of versatility that’s ideal in the home decor world.

Blogs

All You Need To Know About Steel Alloys

Discover the different types of steel alloys and their properties — from composition to strength, sustainability, and versatility.

Read More

COMMON USES FOR COLD ROLLED STEEL

Discover common uses for Cold Rolled Steel (or CRS), a steel alloy known for its extreme resistance to soil resistance and ductility.

Read More

How is Cold Rolled 1008/1010 Steel Used in the Construction Industry?

While many types and grades of steel are regularly used in construction, there is one that lends a particular set of benefits: cold rolled steel.

Read More

How is Cold Rolled Steel Used for Home Design and Decor?

Steel has been a popular material used for both architecture and home design for quite some time. Specifically cold rolled steel.

Read More

All About Steel: Cold Rolled vs. Cold Drawn vs. Hot Rolled

Cold drawn vs cold rolled and so much more. Here is your guide to all things steel.

Read More

What Are the Differences Between Stainless Steel & Cold Rolled Steel?

Stainless steel and cold rolled steel have distinct differences in properties, uses, and cost. Here is a look at those differences.

Read More

Quick Quote

The Authority & Visibility Your Business Deserves.

What are you looking for?

We have helped countless customers acquire specialty metal products that have been elusive or too expensive elsewhere. Since 1961, we’ve empowered customers to explore the niche offerings Mead Metals specializes in, making their business—and bottom line—the priority it should be.

With Mead Metals, you benefit from authority and visibility—your own.

Are you in need of cold rolled 1008/1010 steel? Let us know the quantity, specifications, and delivery date you need, and we'll provide you with a quote typically within 2 hours or nearly guaranteed same day.

Stock Items

Looking for Stock A109 Cold Rolled Steel?

 We keep 1008 steel and 1010 steel available in thicknesses from 0.005 to 0.134, in commercial quality through full-hard tempers.

See a full list of cold rolled 1008/1010 steel stock items here.
