How Does An Edging Line Work in Edge Conditioning?

When working with coil or sheet metal, clean, smooth edges are essential for safety, performance, and aesthetics. Edge lines are innovative machines that process metal coil edges to remove imperfections and create ideal finishes for industrial applications.

With over 60 years of experience refining coil edges in the metals industry, Mead Metals knows edge lines inside out. In this blog, we’ll explore everything on edge lines, from key terminology to conditioning processes and applications.

WHAT ARE EDGE LINES?

Edge lines, also called edge conditioners or end finishers, are machines designed specifically to process and finish the edges of coiled metal.

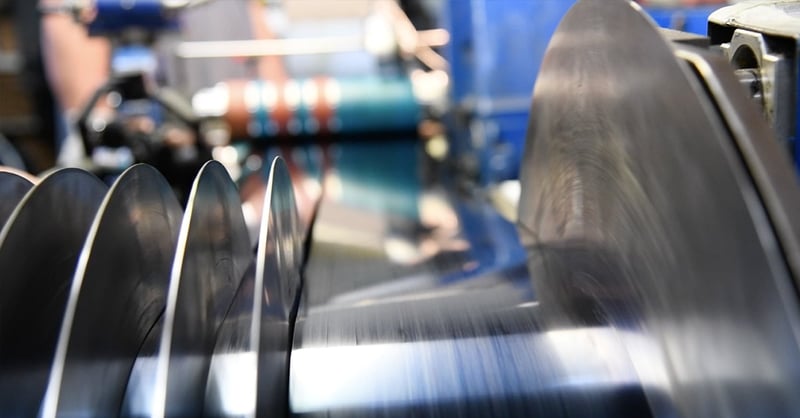

As a metal sheet or coil moves through the edge line, a series of rounded, polished rolls reshape and smooth the edges. The result is a clean, consistent edge profile free of burrs, burrs, slag, or other imperfections.

Edge lines utilize different types of rolls and tooling to produce various edge finishes. Common types include:

• Radius rolls: Create rounded, curved edge profiles
• Smooth rolls: Generate flat, smooth edges
• Scarfing rolls: Specifically remove burrs and flaws
• Combination rolls: Allow flexibility for multiple edge shapes

These rolls apply calibrated pressure as the coil feeds through, kind of like a high-tech pasta machine for metal edges. The rolls spin at the same speed as the fed material to avoid slippage during reshaping.

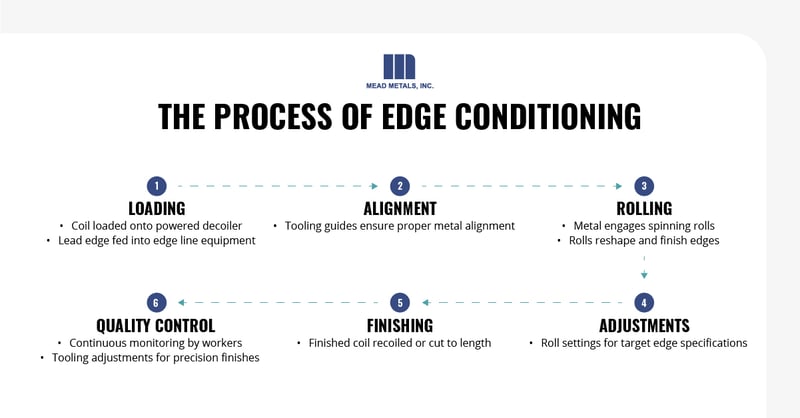

THE PROCESS OF EDGE CONDITIONING

Feeding coiled metal through an edge line follows a straightforward sequence:

BENEFITS OF EDGE CONDITIONING

Utilizing edge lines delivers significant benefits compared to manual conditioning methods:

EFFICIENCY

Continuous automated edge finishing through a line is exponentially faster than manual grinding or conditioning. Edge lines can smooth edges on tons of metal per hour.

CONSISTENT FINISHES

Precision machined rolls reshape every inch of metal to strict tolerances unattainable with hand work. Consistency is key for subsequent fabrication.

REDUCED WASTE

Edge lines significantly reduce scrapped material due to edge flaws. Only the edge face width gets conditioned, keeping more useable metal.

LOW LABOR COSTS

The automated process needs minimal oversight, freeing up workers for higher-value tasks. Less manual labor equals major cost savings.

KEY APPLICATIONS OF EDGE LINES

You’ll find edge lines utilized across industrial sectors dealing with metal coil and sheet, especially:

INDUSTRIAL MANUFACTURING

For automotive panels, appliances, and other fabricated items, edge lines prep metal for stamping, welding, and finishing work center-stage.

CONSTRUCTION

In structural steel builds, edge conditioning prepares support beams and cladding for safer, easier job site assembly.

COMMERCIAL TRANSPORTATION

On trucks and trailers, smoothed metal edges minimize cargo damage while boosting durability against road debris and weather.

IN-HOUSE METAL EDGING WHEN YOU ORDER FROM MEAD METALS

Mead Metals offers in-house edge conditioning services on all specialty metal orders to take projects from raw material to production-ready. Our edge lines handle all common allowances and widths with ISO-certified detail and precision. Skip straight to fabrication and assembly, knowing our edges are ready upon arrival!
