WHAT CAN A METAL SLITTER MACHINE DO?

A metal slitter machine cuts wide coils of metal into narrower strips at precise, repeatable widths. It's used to tighten tolerances, standardize dimensions for downstream processing, and cut scrap by slitting stock close to its finished size before it reaches your line.

A metal slitter is an essential piece of equipment for cutting wide coils or rolls into narrower coils. Often a width tolerance of +/- .003” can be achieved with this precision process. Slitters produce coils that are used in various stamping applications, like automotive parts and electronic components.

However, owning a slitter is not enough. You need a trusted team to provide you with valuable insight into the world of metal — that’s where we step in. In this blog, we’ll dive into the different uses and benefits of metal slitting machines and the things to look for in a metal service provider!

Key Takeaways

• A metal slitter cuts wide coil into narrower strips at precise, repeatable widths.
• Slitting improves downstream tolerance control, product consistency, and material waste versus buying unslit coil.
• Mead holds tolerances of +/- .003 inches and can slit down to quarter-inch strips.
• Slitting customer-owned material is available as a toll processing service, not just as part of a standard material order.

How does metal slitting work?

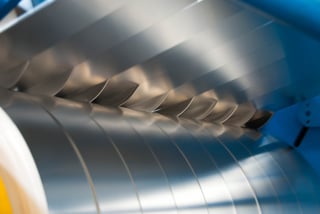

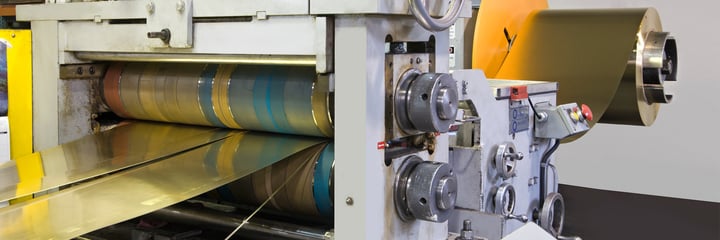

Metal slitting machines are used to change large metal coils into smaller, more manageable strips. This process starts by feeding a large metal coil into the slitting machine and unwinding it through circular blades.

These blades make precise cuts in the metal to produce narrow strips. From there, these strips are wound into small coils — making them ready for further processing or distribution.

Take a glimpse behind the scenes to see how our metal slitters work in this short video:

WHAT MATERIALS CAN YOU PUT IN A METAL SLITTING MACHINE?

The specific materials that can be put through a metal slitting machine depend on the machine’s design, blade types, and thickness capacity. However, these versatile tools can handle a vast range of materials — from copper to stainless steel — making them a valuable machine in the metal processing industry.

WHAT ARE THE BENEFITS TO USING A METAL SLITTING MACHINE?

When you outsource your metal slitting needs to a service provider, you can enjoy various advantages, including:

• Precision — Metal slitting machines can create precise cuts with minimal waste. This helps to achieve tighter tolerances!
• Customization — Metal slitting machines can cut metal to specific widths and lengths, allowing you to purchase metal strips customized to your needs.
• Consistency — Metal slitting machines produce consistent results, even across large quantities of metal strips. This results in a quality product for end users with reduced variation.

Plus, buying material pre-cut to the width of your finished product means you won’t be losing material to edge trimming like you would if you were shearing sheet metal.

Want the mechanics behind each of these? Tight tolerances, consistent output, and less scrap are covered in more detail below.

HOW DOES SLITTING IMPROVE TOLERANCES?

When metal is slit to a precise width, that precision carries through every downstream step. Stamping, forming, and laser cutting all depend on consistent stock width to hold their own tolerances — if the slit width varies even slightly, that variance shows up in the finished part, and there's no fixing it downstream. Tight slitting tolerances remove one variable that later processes can't correct for on their own, which is why tolerance control at the slitting stage matters more than a step this early in the process might suggest.

DOES METAL SLITTING CREATE A MORE CONSISTENT PRODUCT?

Consistent width across an entire coil run means less to adjust for on your end. A coil slit to a tight, even width lets your equipment run the same setup from the first foot of material to the last, instead of compensating for width drift partway through a run. That consistency carries batch to batch, too — material ordered to the same spec should behave the same way on your line every time, without new setup adjustments each time a new coil goes in.

DOES METAL SLITTING REDUCE MATERIAL WASTE?

Buying coil already slit close to its finished width means less gets trimmed away later. When you buy unslit or roughly sized material and cut it down in-house, some percentage of that material becomes scrap by design. Slitting the coil to the right width upfront shifts that waste to the processing stage, where it can be tracked and minimized, instead of passing it downstream as an unavoidable cost on every order.

DOES MEAD METALS OFFER MACHINE SLITTING?

At Mead Metals, we offer customized coil slitting services to meet our customers’ specific requirements. We can cut metal to any width, from 24-inch strips down to quarter-inch strips. Our slitting process is available for any quantity and for all of the metals we carry.

Additionally, we can also emboss the metal strips to create unique patterns! For example, we collaborated with a fish bait customer to produce a hexagonal design for their slit coils. This saved them time and money by eliminating the need for additional embossing during their production process.

Slitting is also available as a toll processing service. Send Mead coil you already own, and we'll slit it to your spec without ever taking ownership of the material.

RELY ON MEAD METALS FOR ALL SHEET METAL SLITTING NEEDS

At Mead Metals, we value collaborative relationships with our clients and have been doing so for over fifty years. We specialize in providing premier metal and secondary services (like metal slitting) to meet our clients’ specific needs. Our team takes pride in producing high-quality, low-volume specialty metals and is committed to doing so for decades to come.
